Ikonmac high-voltage Static Var Generator (SVG) system for industrial and grid-scale reactive power compensation

SVG PRINCIPLE

SVG adopts a cascaded multi-level H-bridge power unit configuration, utilizing turn-off capable high-power power electronic devices (such as IGBTs) to form a self-commutated bridge circuit. It is connected in parallel to the power grid through a reactor (or step-up transformer). By appropriately adjusting the amplitude and phase of the AC-side output voltage of the bridge circuit or directly controlling the AC-side current, the system can absorb or generate reactive current that meets grid requirements, achieving dynamic reactive power compensation.

Diagram of Working Principle

Operation Mode

Waveform and Phase Diagram

Explanation

No Load Operation Mode

Basic working principle of Ikonmac Static Var Generator showing dynamic reactive power compensation

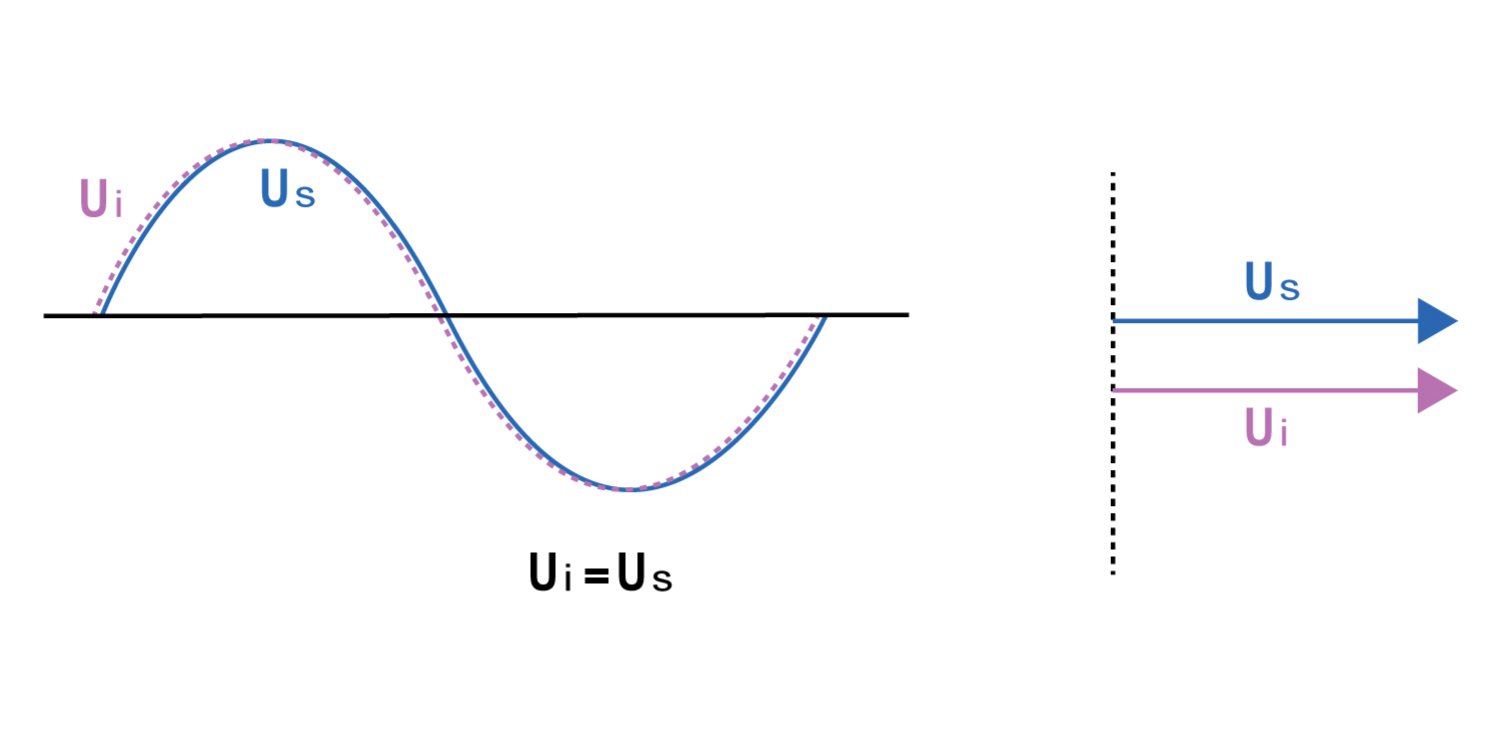

When U_i = U_s, SVG does not provide compensation

Inductive Operation Mode

Working principle diagram of Ikonmac high-voltage Static Var Generator for dynamic reactive power compensation

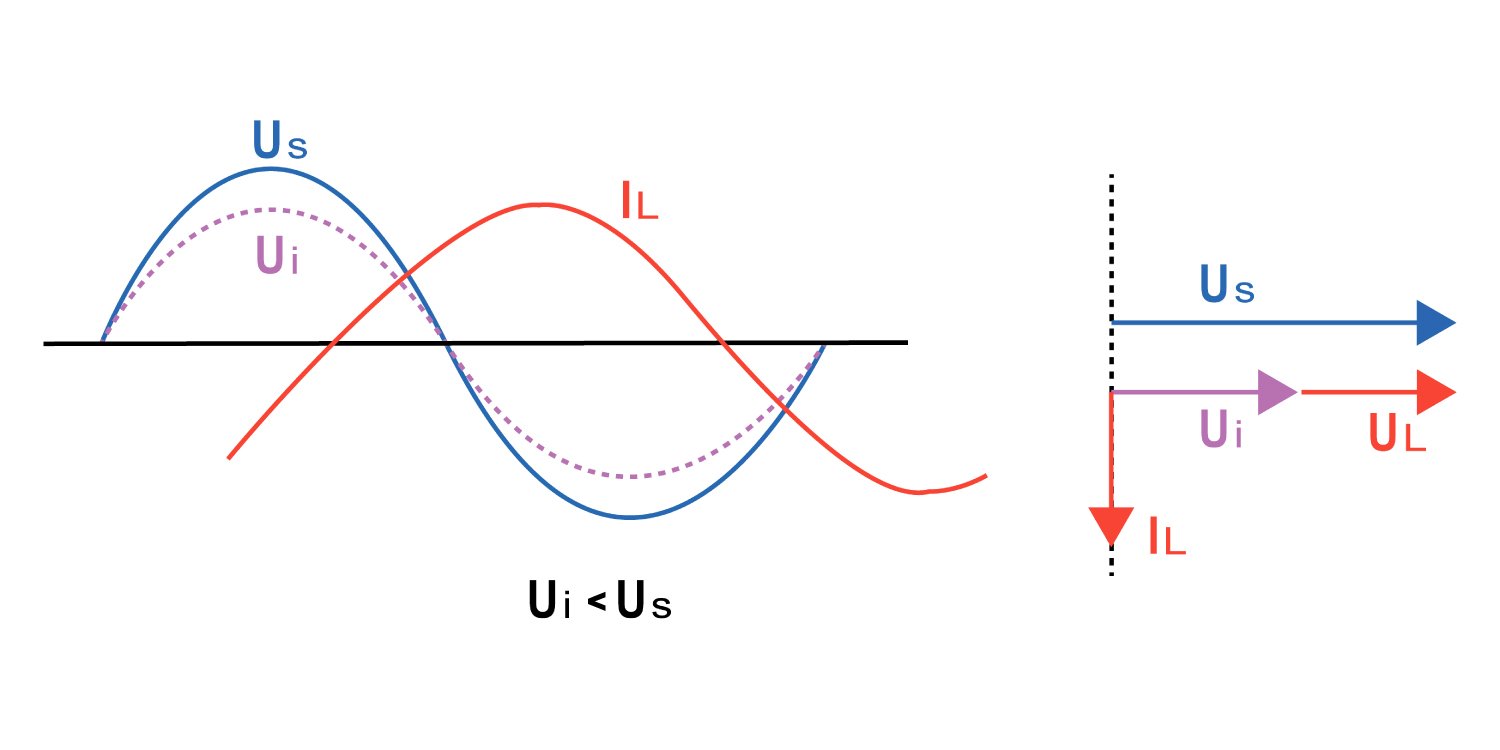

When U_i < U_s, SVG is equivalent to a continuously adjustable inductance

Capacitive Operation Mode

System-level diagram showing Ikonmac high-voltage SVG integrated into a power grid for reactive power compensation

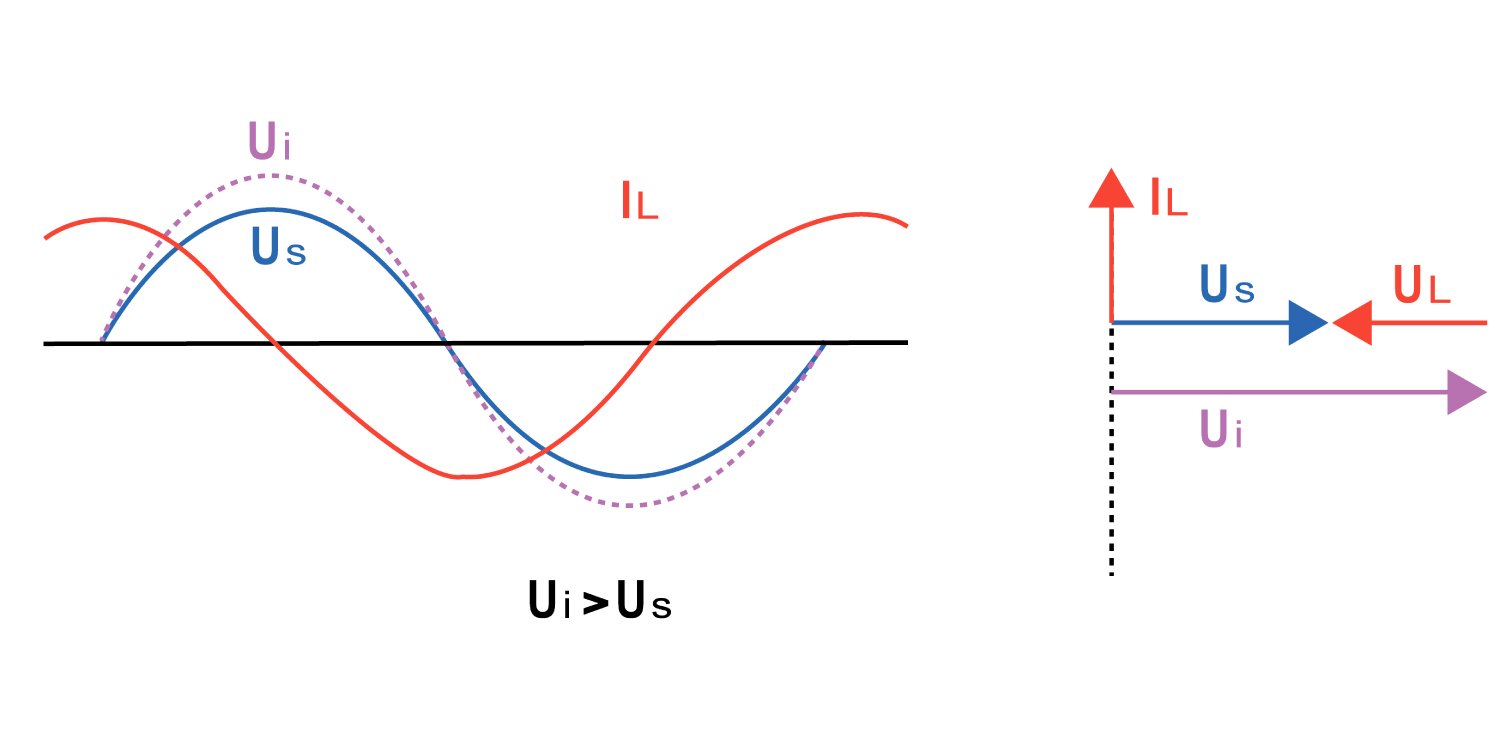

When U_i > U_s, SVG is equivalent to a continuously adjustable capacitor

SVG PRINCIPLE

iKonMac Static Var Generator adopts a cascaded multi-level H-bridge power unit configuration, utilizing turn-off capable high-power power electronic devices (such as IGBTs) to form a self-commutated bridge circuit. It is connected in parallel to the power grid through a reactor (or step-up transformer). By appropriately adjusting the amplitude and phase of the AC-side output voltage of the bridge circuit or directly controlling the AC-side current, the system can absorb or generate reactive current that meets grid requirements, achieving dynamic reactive power compensation.

Diagram of Working Principle

Operation Mode

Waveform and Phase Diagram

Explanation

No Load Operation Mode

When U_i = U_s, SVG does not provide compensation

Inductive Operation Mode

When U_i < U_s, SVG is equivalent to a continuously adjustable inductance

Capacitive Operation Mode

When U_i > U_s, SVG is equivalent to a continuously adjustable capacitor

TOPOLOGY & TYPE

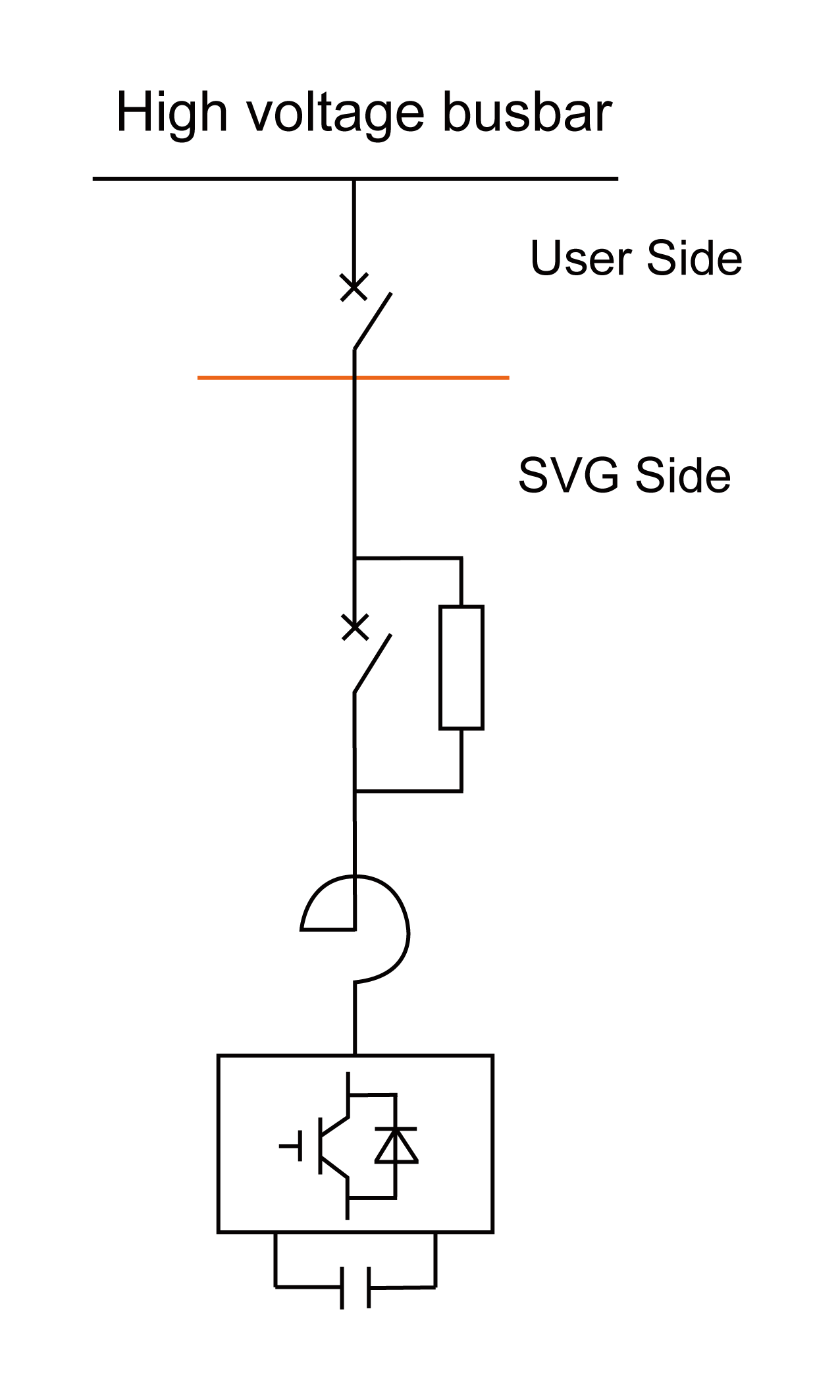

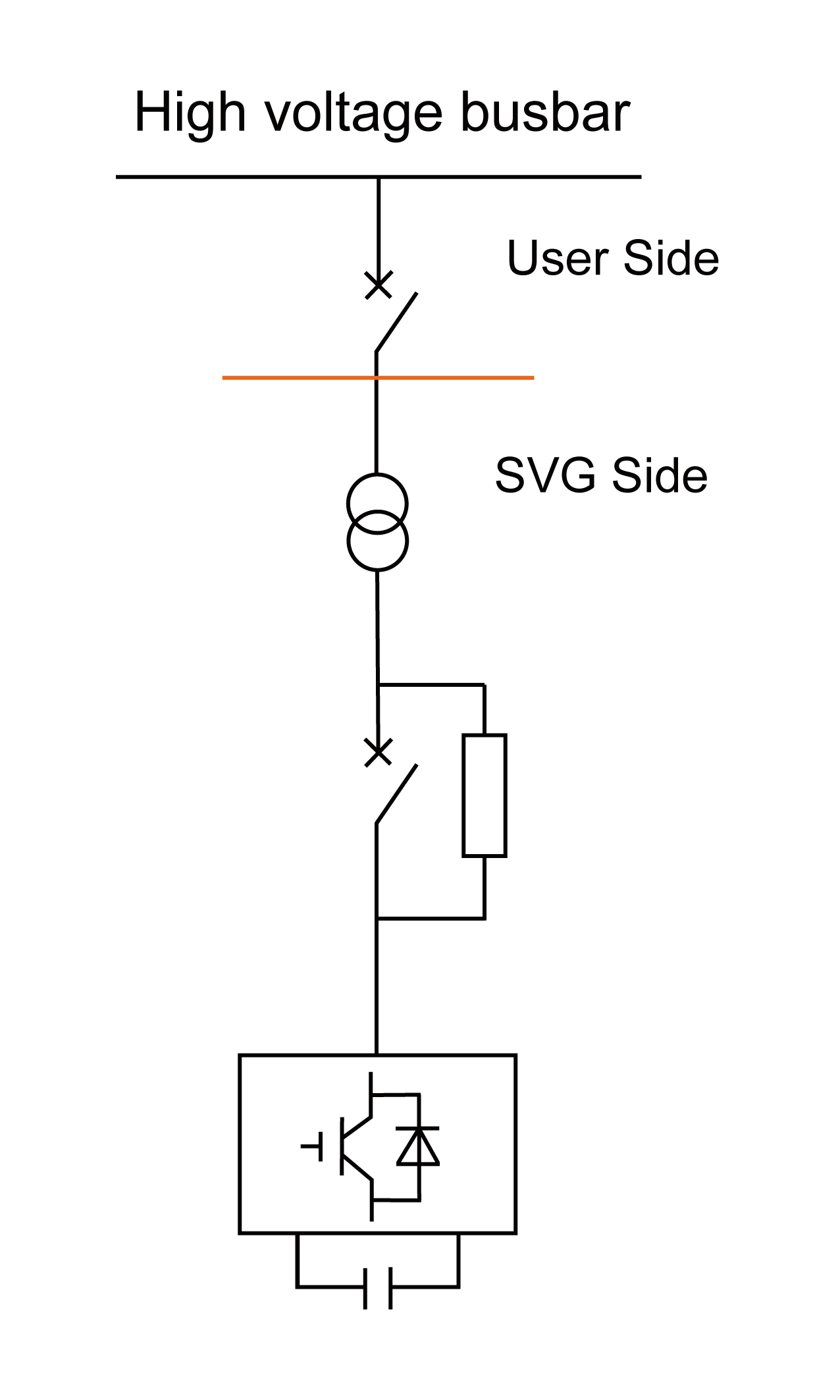

Circuit topology diagram of Ikonmac High Voltage Static Var Generator for reactive power compensation

Boosting Start Connected SVG

Boosting start-connected topology diagram of Ikonmac high-voltage Static Var Generator for reactive power control

Direct Hanging Start Connected SVG

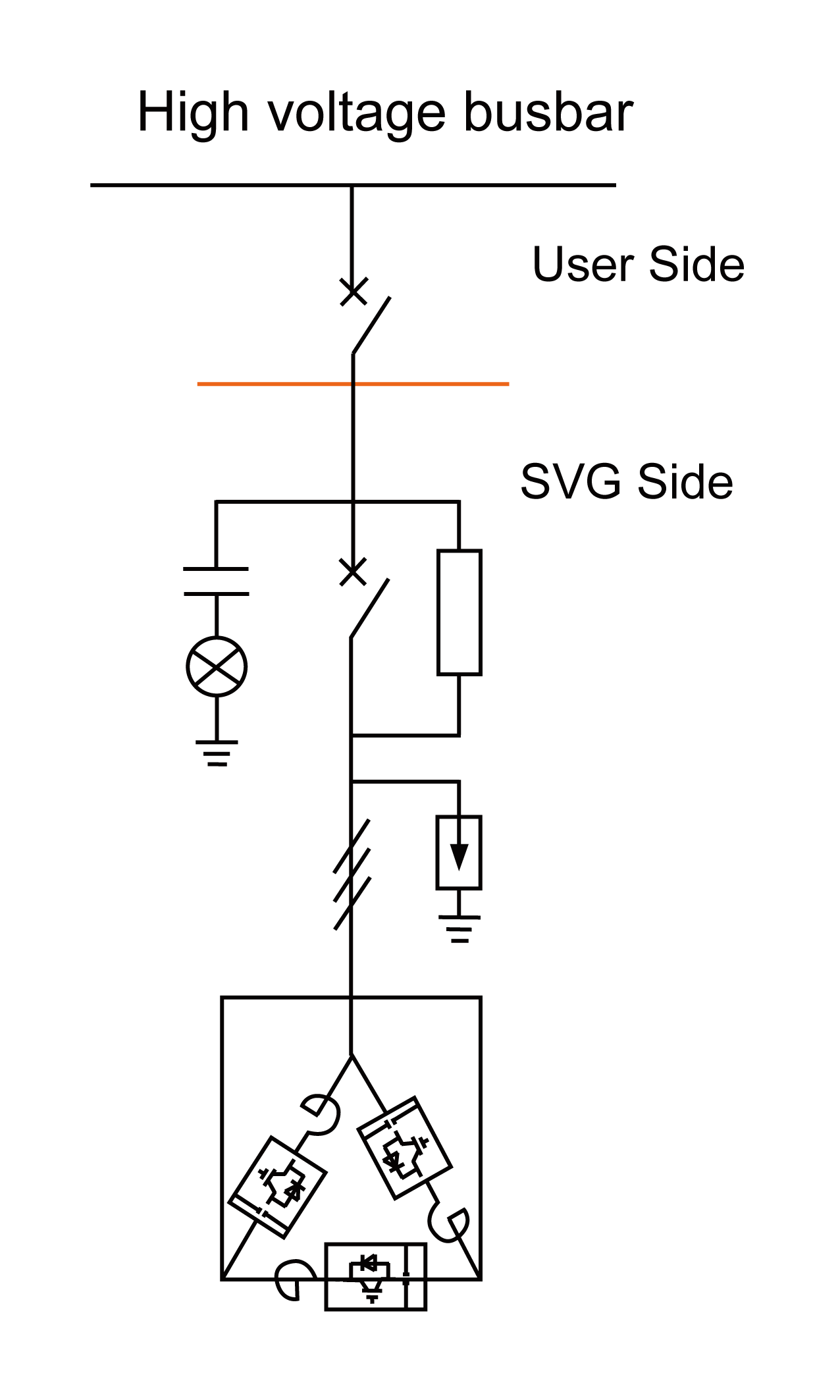

Direct-hanging delta-connected topology diagram of Ikonmac high-voltage Static Var Generator system

Direct Hanging Delta Connected SVG

Types of HV-SVG

Indoor Cabinet Type

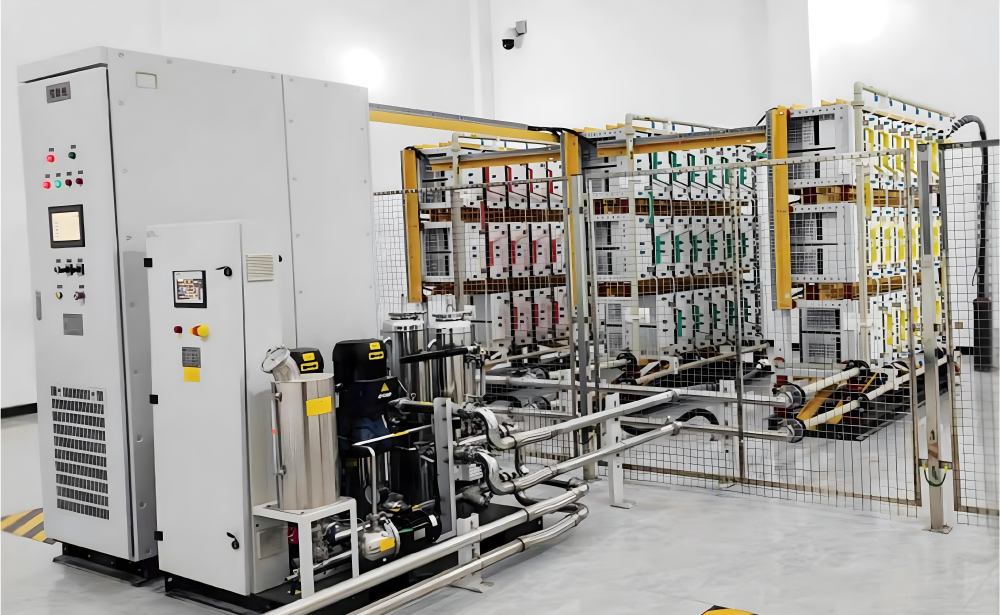

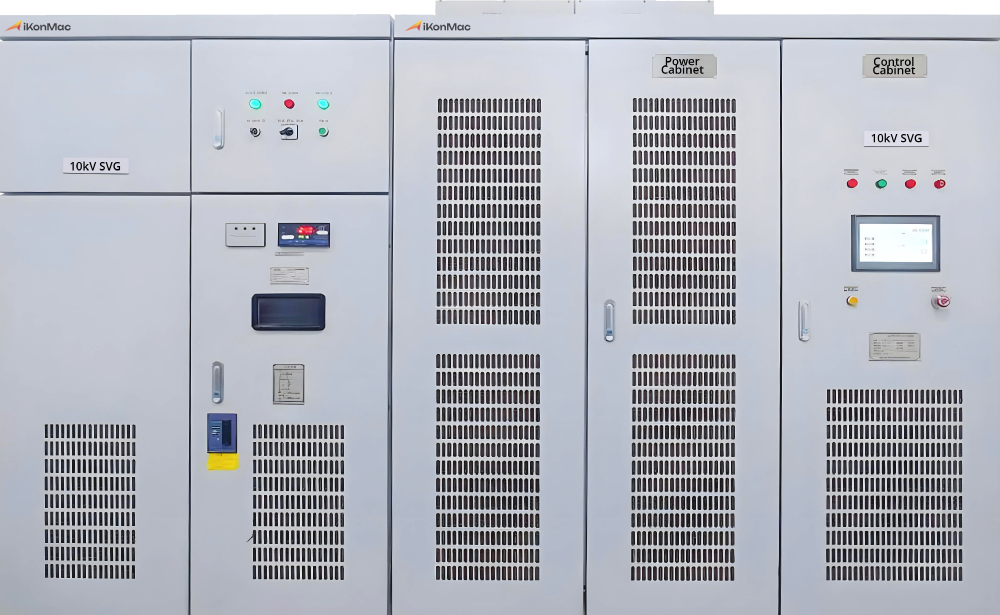

Ikonmac high-voltage Static Var Generator in open-frame indoor design for integration into power rooms

Indoor Frame Type

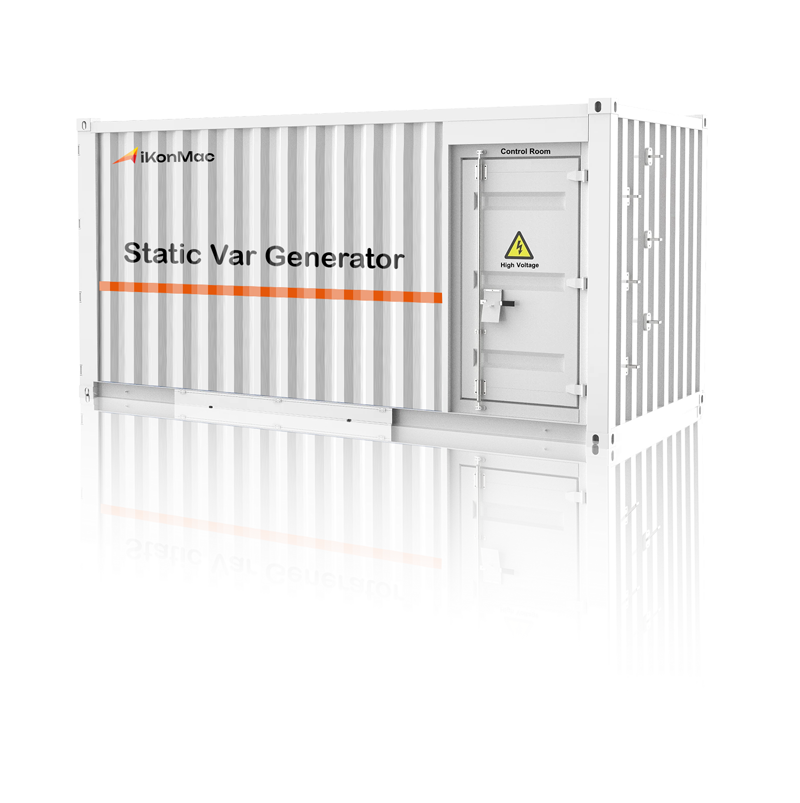

Ikonmac outdoor containerized high-voltage Static Var Generator for flexible deployment in substations and remote sites

Outdoor Container Type

TOPOLOGY & TYPE

Boosting Start Connected SVG

Direct Hanging Start Connected SVG

Direct Hanging Delta Connected SVG

Types of HV-SVG

Indoor Cabinet Type

Indoor Frame Type

Outdoor Container Type

PARAMETERS

Rated Output Voltage	3kV/6kV/10kV/20kV/22kV/24kV/33kV/35kV
Rated Capacity	-150Mvar~+150MVar
Main Circuit	Three-phase 3kV, 6kV, 10kV, 20kV, 35kV
Control Circuit	DC220V, AC380V
Allowable power fluctuations	≤120%
Functions	Meet the standards of IEEE Std 519-1992, GB/T 14549-93
Control Mode	Fixed reactive powe, fixed voltage, fixed power factor, comprehensive control of voltage/power factor
Control Chip	DSP+FPGA
Operating Frequency	50Hz/60Hz
Response Time	≤5ms
Unit DC Voltage Control	Stable unit DC busbar control ensures normal operation of the device
Carrier Phase Shifting	Eliminate or reduce output harmonics
Subsidiary Functions	Fault recording, harmonic current compensation, negative sequence current compensation, etc
Run/Stop Setting	Touch screen, DCS control, upper communication
Upper Communication	RS485, Ethernet, Optical Fibre, RS232, 4G
Protection Function	Overcurrent, quick break, overvoltage, instantaneous drop, cooling fan failure, power unit failure, PT disconnection, unit overvoltage, system voltage abnormality, input voltage imbalance
Display/Operation	Local: Touch screen, cabinet door buttons, etc Remote: SCADA, AVC, etc
Cooling Mode	Forced air-cooled, liquid-cooled, air conditioning internal circulation, air liquid cooled
Protection Level	≥IP56
Ambient Temperature	-10°C ~ +50°C
Storage/Transportation Temperature	-40°C ~ +85°C
Ambient Humidity	≤95%, no condensation
Application Environment	Below altitude of 2000 meters, there are no corrosive gases,flammable gases or salt spray; Customization is required for environments above 2000 meters or for special use

PARAMETERS

Rated Output Voltage	3kV/6kV/10kV 20kV/22kV/ 24kV/33kV/ 35kV
Rated Capacity	-150Mvar ~ +150MVar
Main Circuit	Three-phase 3kV, 6kV, 10kV, 20kV, 35kV
Control Circuit	DC220V, AC380V
Allowable power fluctuations	≤120%
Functions	Meet the standards of IEEE Std 519-1992, GB/T 14549-93
Control Mode	Fixed reactive powe, fixed voltage, fixed power factor, comprehensive control of voltage/power factor
Control Chip	DSP+FPGA
Operating Frequency	50Hz/60Hz
Response Time	≤5ms
Unit DC Voltage Control	Stable unit DC busbar control ensures normal operation of the device
Carrier Phase Shifting	Eliminate or reduce output harmonics
Subsidiary Functions	Fault recording, harmonic current compensation, negative sequence current compensation, etc
Run/Stop Setting	Touch screen, DCS control, upper communication
Upper Communication	RS485, Ethernet, Optical Fibre, RS232, 4G
Protection Function	Overcurrent, quick break, overvoltage, instantaneous drop, cooling fan failure, power unit failure, PT disconnection, unit overvoltage, system voltage abnormality, input voltage imbalance
Display/Operation	Local: Touch screen, cabinet door buttons, etc Remote: SCADA, AVC, etc
Cooling Mode	Forced air-cooled, liquid-cooled, air conditioning internal circulation, air liquid cooled
Protection Level	≥IP30
Ambient Temperature	-10°C ~ +40°C
Storage/Transportation Temperature	-40°C ~ +85°C
Ambient Humidity	≤95%, no condensation
Application Environment	Below altitude of 2000 meters, there are no corrosive gases, flammable gases or salt spray; Customization is required for environments above 2000 meters or for special use

QUALITY CONTROL

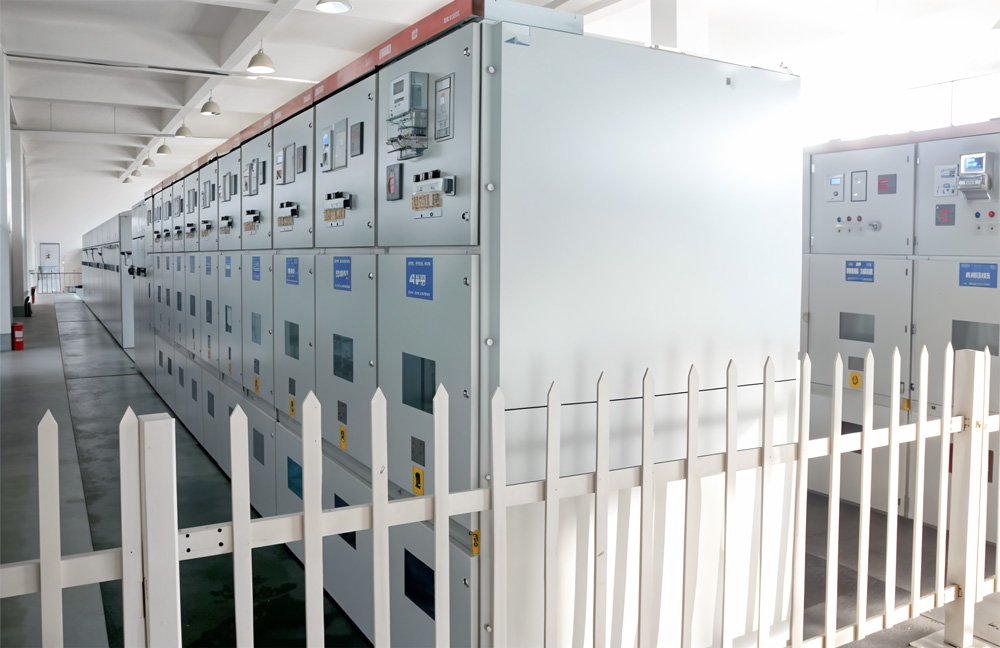

Ikonmac production area with multiple high-voltage Static Var Generator cabinets prepared for quality testing

PCB Coating

Ikonmac high-voltage Static Var Generator units lined up for system testing and visual inspection

FCT-ICT Testing

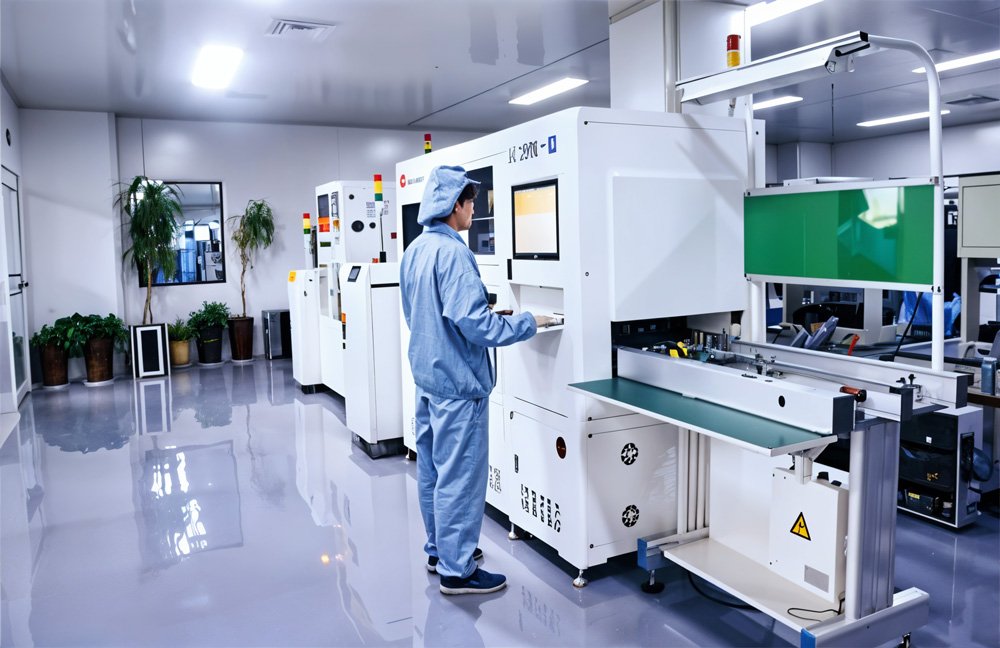

Ikonmac engineers conducting diagnostic and performance tests on high-voltage SVG units in factory

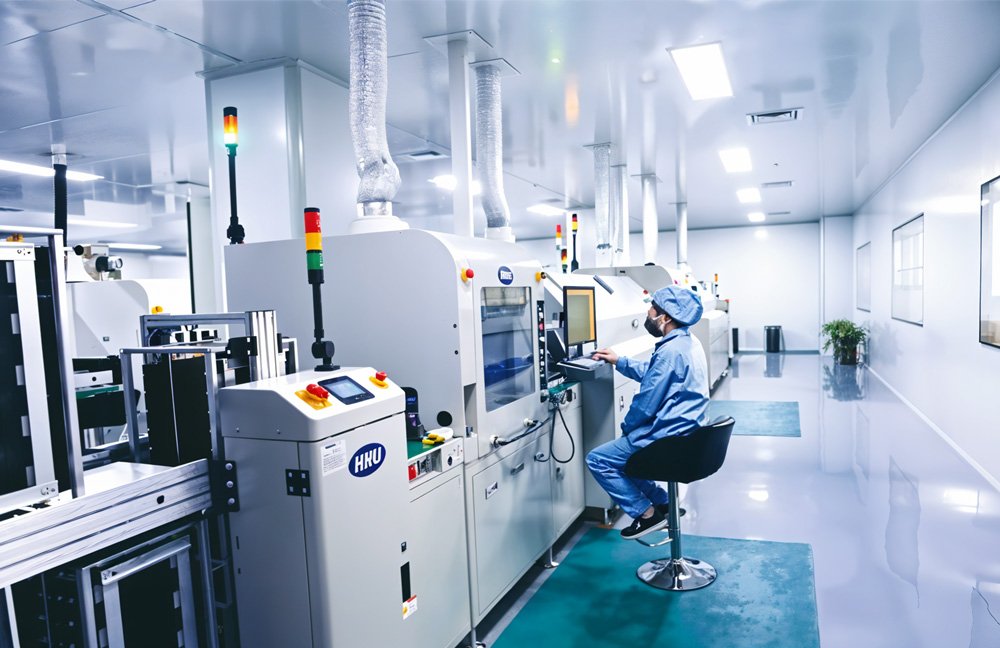

SMT-AOI Inspection

Ikonmac high-voltage SVG cabinet undergoing electrical testing in factory quality control area

Power Module Production

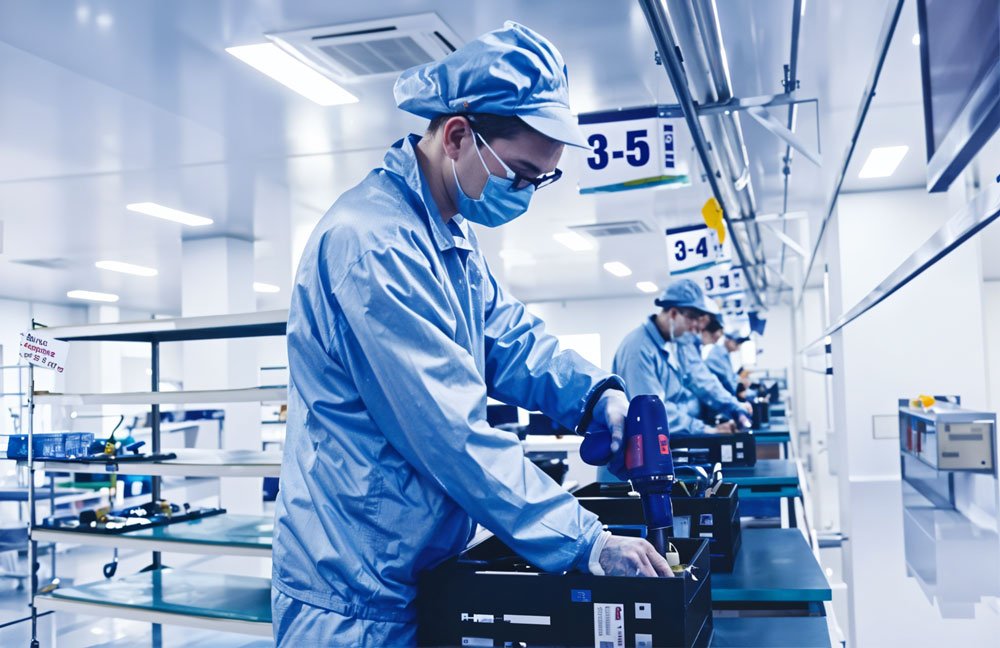

Ikonmac production line assembling high-voltage SVG cabinets with precision equipment and skilled technicians

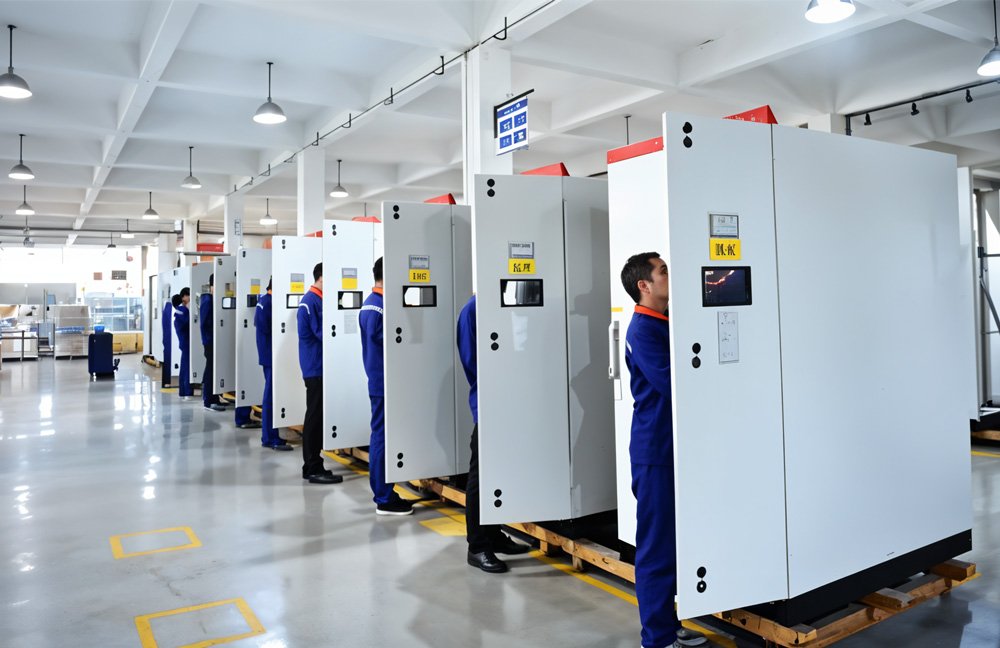

Complete Machine Assembly

Ikonmac engineers performing system integration and testing on high-voltage SVG units at the factory

High-Voltage Testing

Ikonmac technician wiring internal components of a high-voltage Static Var Generator cabinet

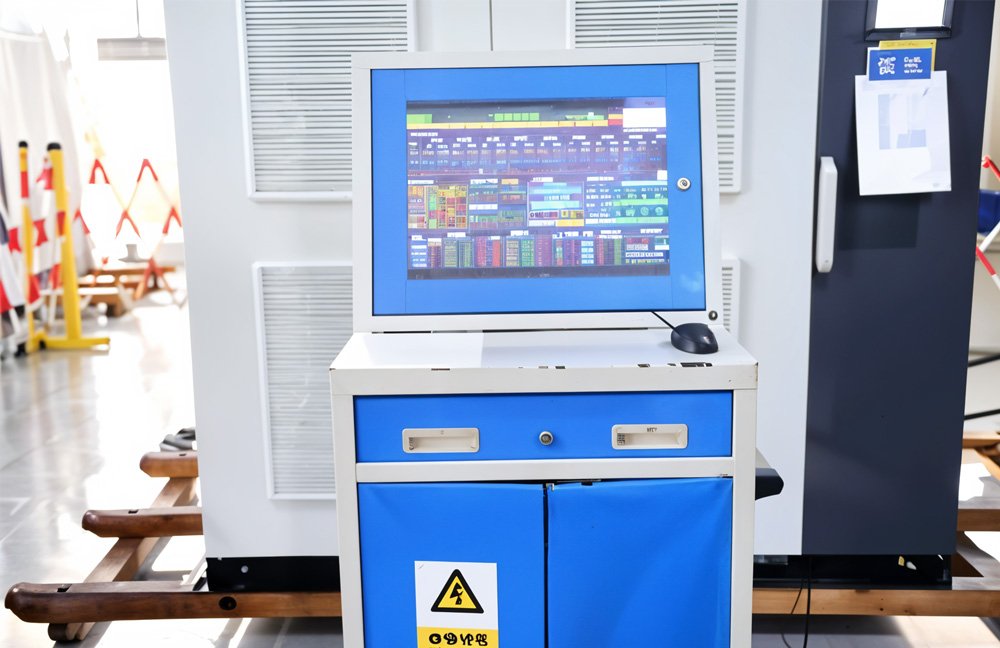

Automated Complete Testing

Ikonmac high-voltage Static Var Generator undergoing final inspection and assembly in production facility

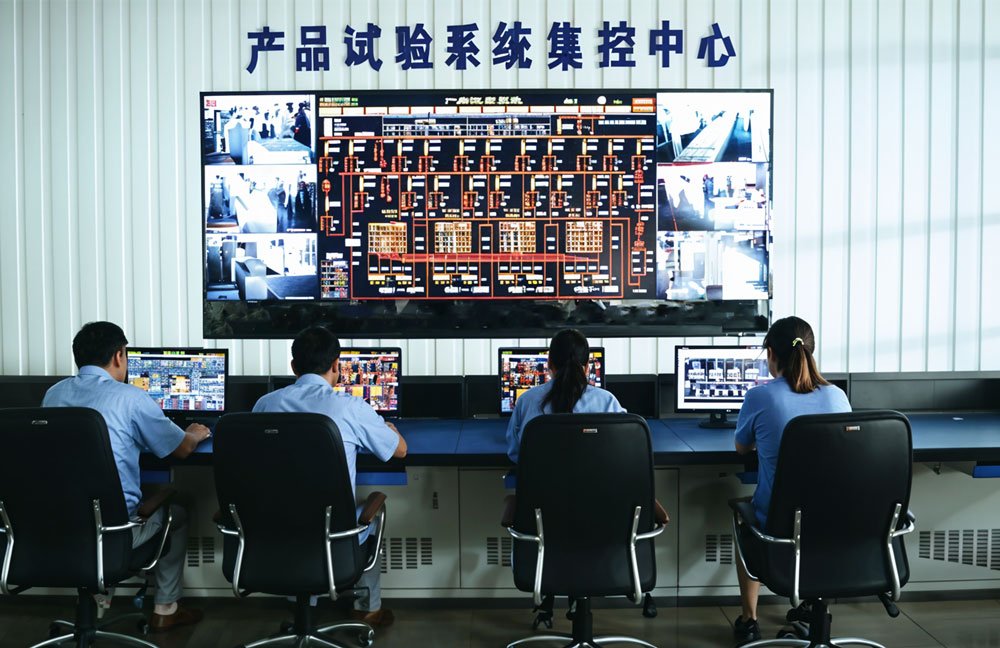

Central Control Room

Ikonmac high-voltage Static Var Generator production line at advanced manufacturing facility

Full-Load Testing
