Blue Sky Steel Co., Ltd

Static Var Generator for Steel Industry

Blue Sky Steel Co., Ltd
Static Var Generator for
Steel Industry

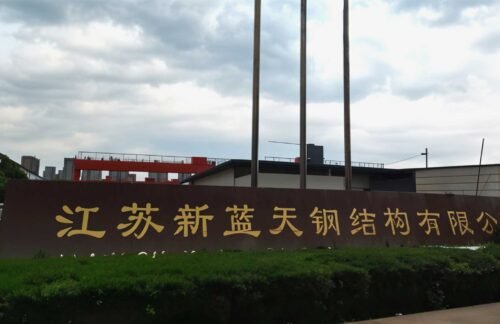

Blue Sky Steel Company Picture

Project Introduction

        Jiangsu New Blue Sky Steel Structure Co., Ltd. is a professional large-scale enterprise in the steel structure field and a high-tech enterprise. The company integrates steel structure design, R&D, sales, manufacturing, and installation. It is located in Jiangning, Nanjing, with a registered capital of 200 million yuan. The total area of the factory is 470 acres, with a total production workshop area of 143,600 square meters. The company currently employs more than 500 people.

Analysis and Solution

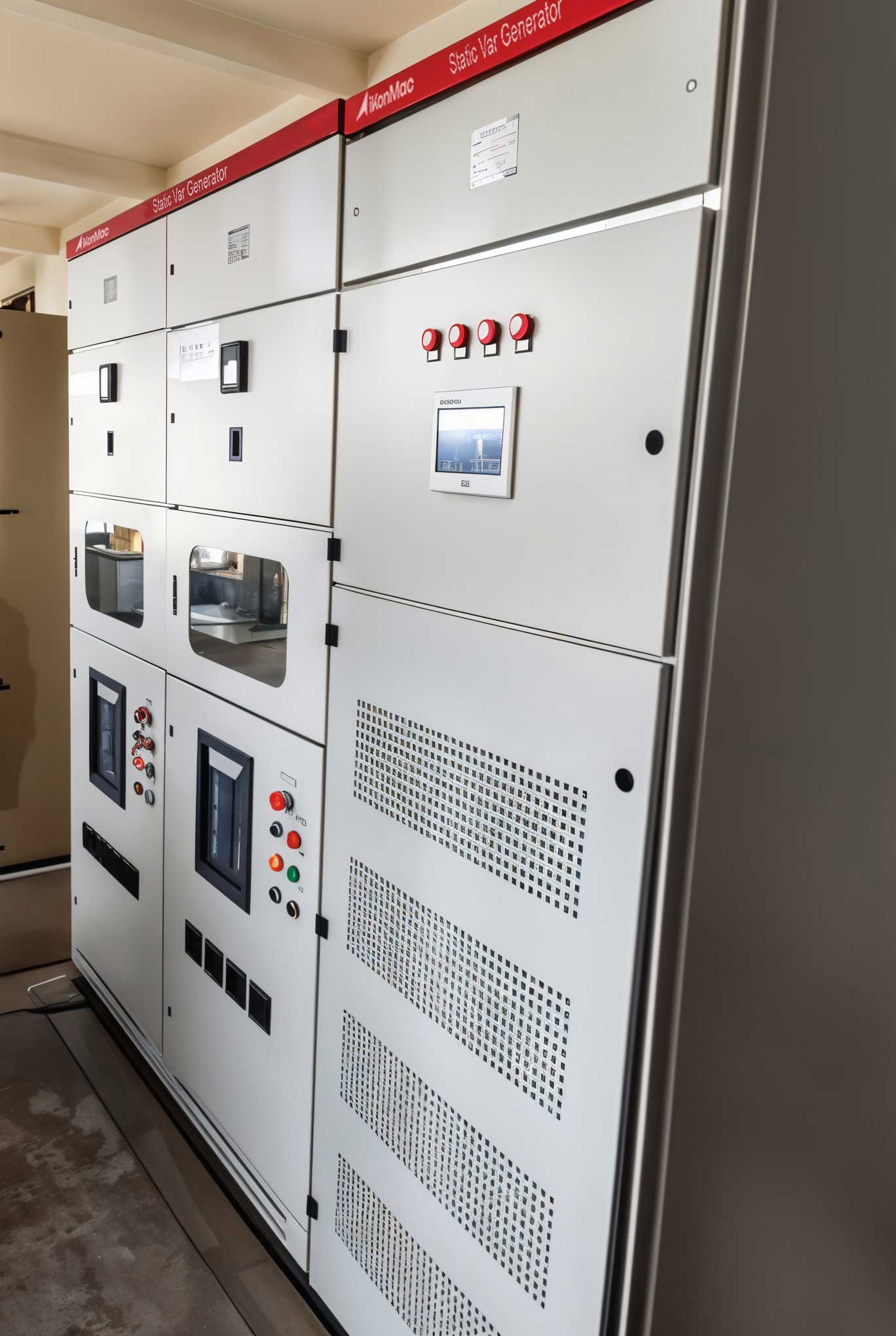

Steel Industry Onsite 1

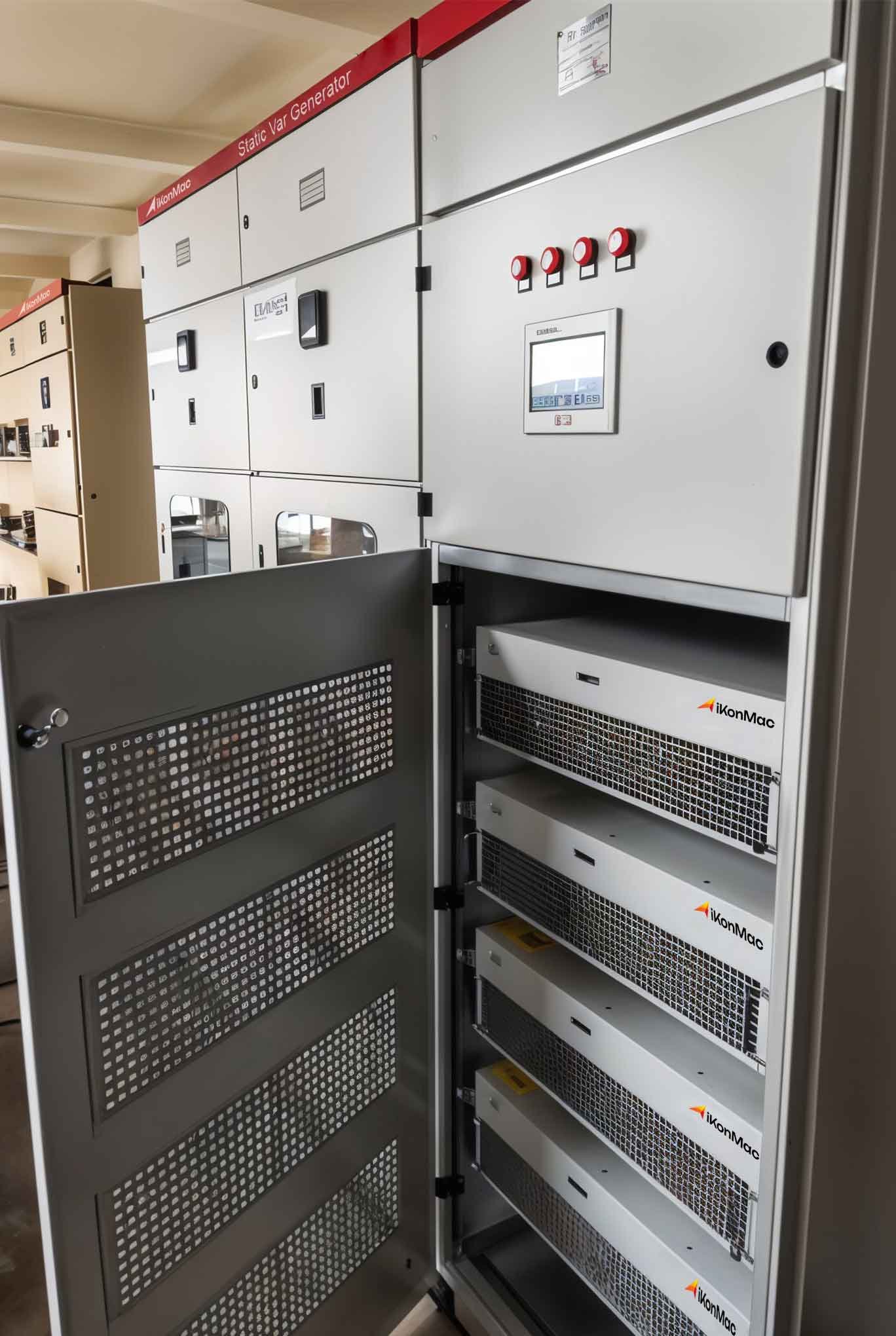

Steel Industry Onsite 2

        This project involves low-voltage capacity expansion, with an addition of 1600 kVar Static Var Generator in compensation equipment. The power factor of the low-voltage system was very low, currently the equipment is running very well!

Performance

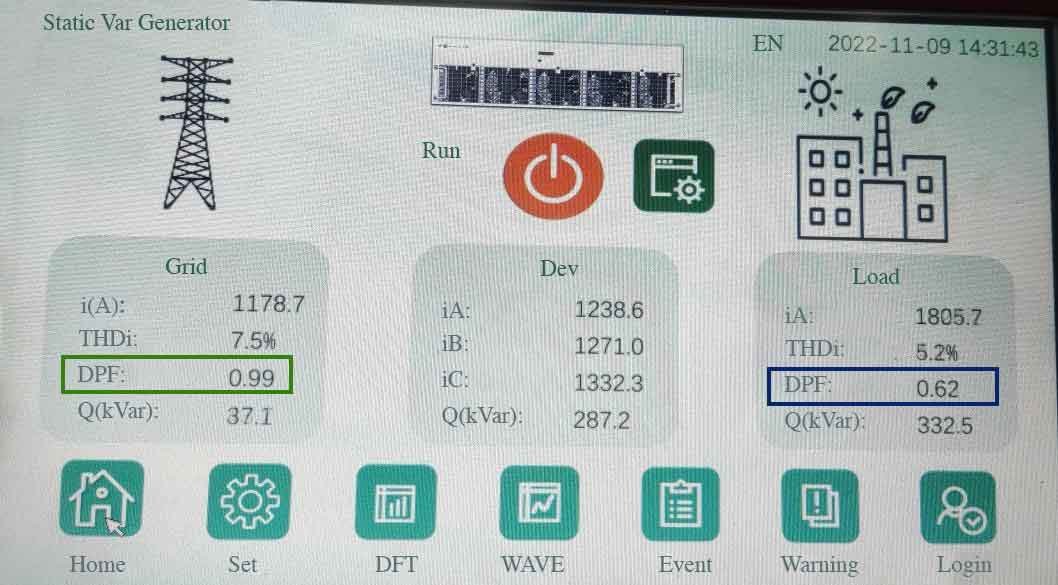

Blue Sky Steel Result After Mitigation

Power Factor After Compensation 0.99

        After the SVG equipment was installed, the power factor improved from 0.62 to 0.99, showing excellent compensation results. With the improved power factor, the load on the transformer was significantly reduced, enhancing the transformer’s operational efficiency and lowering the user’s electricity costs.
