Shanghai Zhaofeng PlazaActive Harmonic Filter for Commercial Building Industry
Shanghai Zhaofeng PlazaActive Harmonic Filter for Commercial Building Industry
Project Introduction

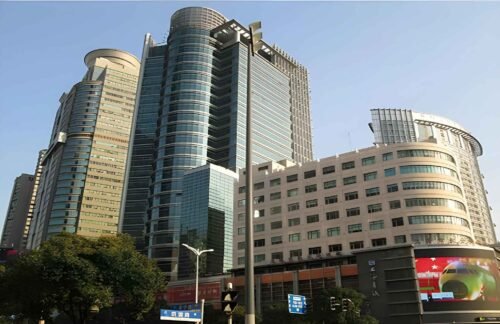

Shanghai Zhaofeng Plaza is surrounded by high-rise buildings and numerous businesses. It is a comprehensive business plaza integrating dining, entertainment, commerce, and shopping, with the distribution room located on the basement floor of the mall. Zhaofeng Plaza has a total of 42 floors, standing 159 meters tall. Floors 8 to 42 are office spaces, with a total building area of 55,416 square meters and a typical floor area of 1,900 square meters, featuring a clear height of 2.5 meters.
Analysis and Solution
Shanghai Zhaofeng Tower has a large number of energy-saving lighting devices, such as fluorescent lamps and showcase downlights. These lighting devices use ballasts and primarily generate 3rd-order zero-sequence harmonics. Additionally, there are rectifier-type UPS systems, office equipment, variable frequency air conditioners, and variable frequency elevators, which mainly produce 5th and 7th-order harmonics. The significant harmonic generation degrades power quality and affects the stable operation of distribution and production equipment.
Performance
THDi After Mitigation 3.6%

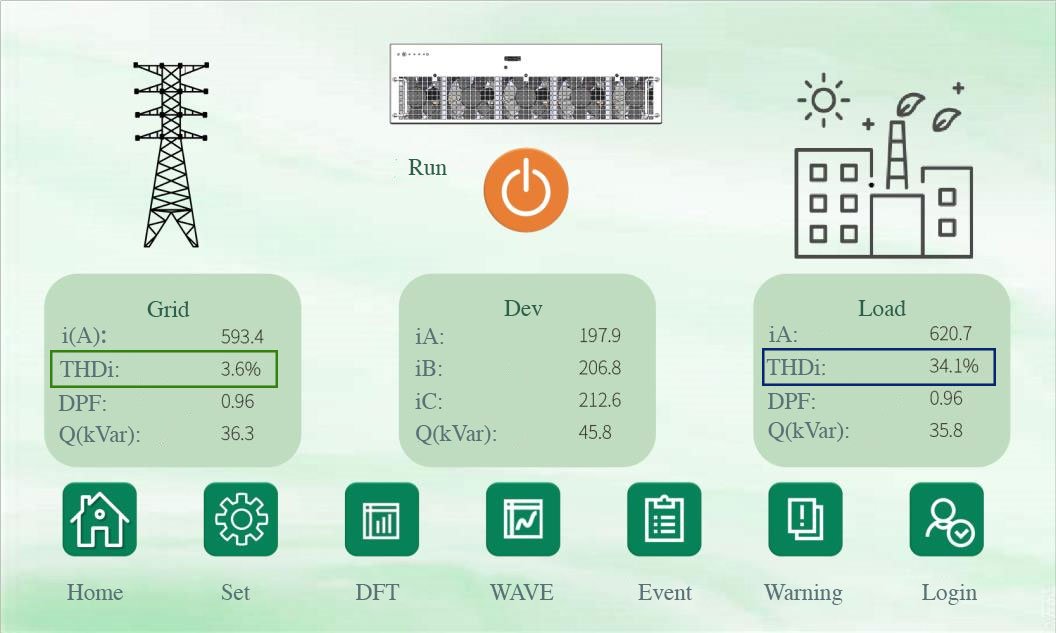

After iKonMac Active Harmonic Filter 400Amps was installed, the harmonic current distortion rate was reduced from 34.1% to 3.6%. The harmonic mitigation effect is excellent, effectively eliminating harmonic currents in the distribution system, improving power quality, reducing line losses, and ensuring the stable operation of distribution and production equipment. The significant results have been recognized and appreciated by the owner.
