Power Quality Solution for Solar Industry

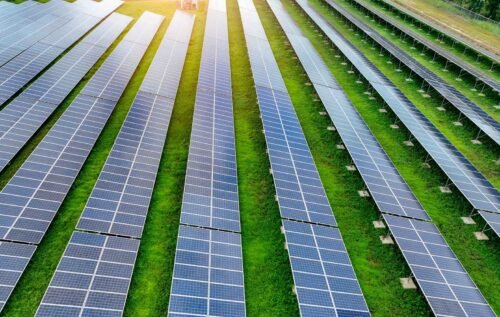

Industry Overview
Installing photovoltaic (PV) power systems on unused factory rooftops helps businesses reduce energy costs, use idle resources, and contribute to sustainability goals. Surplus power can also be sold back to the grid for extra income. However, PV systems can lower the power factor and generate harmonics, affecting power quality and safety. To address this, businesses should add a Static Var Generator (SVG) to compensate for reactive power and reduce harmonics, improving energy efficiency and reducing electricity expenses.
Power Quality Issues
Photovoltaic (PV) systems can reduce the power factor of the supply system by supplying active power to the load, which decreases the transformer’s active power output. This can lead to non-compliance with power company standards. Large PV systems may also cause overcompensation of the power factor. The inverter, a key component, is a common source of harmonics, mainly the 5th and 7th, with distortion rates of 5-20%.
Power Quality Challenges
After installing PV systems, the power factor decreases, and the output of the PV system fluctuates frequently. Traditional capacitor compensation is slow and insufficient, leading to power company penalties and higher electricity costs. Additionally, the harmonics generated by the PV inverters create safety risks in the grid. Therefore, it’s necessary to install filtering devices to manage these issues effectively.
Solution
Although the harmonics generated by PV systems are small, they significantly reduce the system’s power factor. The solution focuses on compensating for reactive power, while also addressing harmonics. The IKM-SVG series Static Var Generator from iKonMac can compensate for the system’s reactive power and improve the power factor to 0.99. It also filters harmonics from the 2nd to the 25th order, removing 90% of the harmonics. This solution effectively solves the power quality problems caused by photovoltaic systems.
SUCCESSFUL SOLAR CASES
200Kvar Static Var Generator
Jiangsu Tianyuan Glass Products Co., Ltd.
No. |
City |
Project |
Date |
Solution |
---|---|---|---|---|
1 |
Jiangsu |
Changzhou Photovoltaic Factory Harmonic Treatment Project |
August 2024 |
AHF |
2 |
Jiangsu |
Yancheng Shanjia Photovoltaic Reactive Power Compensation Project |
July 2023 |
SVG |
3 |
Sichuan |
Ganzi Shiqu County Photovoltaic Power Station Reactive Power Compensation Project |
July 2023 |
SVG |
4 |
Jiangsu |
Xuzhou Xinyu Photovoltaic Technology Co., Ltd. Active Filter Project |
September 2022 |
AHF |
5 |
Zhejiang |
Huihuang Sanlian Tools Industry Co., Ltd. Photovoltaic Reactive Power Compensation Project |
July 2022 |
AHF |
6 |
Jiangxi |
Yanhu Photovoltaic Power Generation Project |
September 2021 |
SVG |
7 |
Jiangxi |
Daqian Yixing Photovoltaic Project |
September 2021 |
SVG |
8 |
Zhejiang |
Ningbo Jisheng Electric Co., Ltd. Distributed Photovoltaic Power Generation Project |
May 2021 |
AHF |
9 |
Anhui |
Anhui Suma Development, Jimei Photovoltaic Project |
May 2021 |
SVG |
10 |
- |
Jianda Photovoltaic Project |
May 2021 |
SVG |
11 |
- |
Tianhai Photovoltaic Project |
May 2021 |
SVG |
12 |
- |
Dahang Photovoltaic Project |
May 2021 |
SVG |
13 |
Hubei |
Zhongxiang Fengle Zhuzhuang Photovoltaic Power Generation Project |
October 2021 |
SVG |
SUCCESSFUL SOLAR CASES
200Kvar Static Var Generator
Jiangsu Tianyuan Glass Products Co., Ltd.
Date |
Project |
Solution |
---|---|---|
Aug2024 |
Changzhou Photovoltaic Factory |
AHF |
Jul2023 |
Shanjia Photovoltaic Project |
SVG |
Jul2023 |
Shiqu County Photovoltaic Station |
SVG |
Sep2022 |
Xuzhou Xinyu Photovoltaic Project |
AHF |
Jul2022 |
Sanlian Tools Industry Co., Ltd. |
AHF |
Sep2021 |
Yanhu Photovoltaic Project |
SVG |
Sep2021 |
Daqian Photovoltaic Project |
SVG |
May2021 |
Ningbo Jisheng Electric Co., Ltd. |
AHF |
May2021 |
Suma Photovoltaic Project |
SVG |
May2021 |
Jianda Photovoltaic Project |
SVG |
May2021 |
Tianhai Photovoltaic Project |
SVG |
May2021 |
Dahang Photovoltaic Project |
SVG |
Oct2021 |
Fengle Photovoltaic Project |
SVG |
