Why Is Power Quality Important?
The Power Grid Can Also Get Sick
People will suffer from various diseases, such as colds, pneumonia, heart disease, etc. The power grid, like humans, will also get sick. So what diseases will the power grid suffer from?
- REACTIVE POWER
Reactive power is the energy needed to establish an AC electromagnetic field. If it cannot be compensated locally at the load, it must be drawn from the grid via transmission lines, resulting in additional energy losses.
2. HARMONIC
Nonlinear loads generate harmonic currents that distort voltage and current waveforms, increasing losses, heat, and reducing equipment lifespan. Severe harmonics can damage equipment.
3. THREE PHASE IMBALANCE
400V low-voltage systems often have uneven single-phase loads, causing three-phase imbalance, which increases transformer losses and wastes capacity.
4. VOLTAGE FLUCTUATIONS
High-power load switching causes reactive power shocks, leading to voltage dips or surges that disrupt equipment operation.
The Power Grid Can Also Get Sick
Power Grid Get Sick?
- REACTIVE POWER
Reactive power is the energy needed to establish an AC electromagnetic field. If it cannot be compensated locally at the load, it must be drawn from the grid via transmission lines, resulting in additional energy losses.
2. HARMONIC
Nonlinear loads generate harmonic currents that distort voltage and current waveforms, increasing losses, heat, and reducing equipment lifespan. Severe harmonics can damage equipment.
3. THREE PHASE IMBALANCE
400V low-voltage systems often have uneven single-phase loads, causing three-phase imbalance, which increases transformer losses and wastes capacity.
4. VOLTAGE FLUCTUATIONS
High-power load switching causes reactive power shocks, leading to voltage dips or surges that disrupt equipment operation.
Symptoms After Grid Illness
People who catch a cold may have a fever, cough, runny nose, and lack of energy. So what are the effects of a power grid illness?
Many inductive devices in the power system generate reactive power, lowering the power factor. The power supply department sets power factor requirements for loads, and users with low power factors are fined through rate adjustments.
Third and fifth harmonic currents can overload the neutral line, causing heating and safety hazards.
Harmonics can cause capacitor overvoltage, overheating, and damage, potentially leading to failure of compensation devices and system outages.
Reactive power and harmonic currents increase total power demand, reducing transformer capacity. Managing these factors improves transformer efficiency and reduces losses.
Harmonics can disrupt relay protection signals, causing device malfunctions and ineffective protection.
Harmonics can affect user devices, leading to display inaccuracies, touch failures, and malfunctions in precision equipment like medical or CNC devices.
Symptoms After Grid Illness
People who catch a cold may have a fever, cough, runny nose, and lack of energy. So what are the effects of a power grid illness?
Many inductive devices in the power system generate reactive power, lowering the power factor. The power supply department sets power factor requirements for loads, and users with low power factors are fined through rate adjustments.
Third and fifth harmonic currents can overload the neutral line, causing heating and safety hazards.
Harmonics can cause capacitor overvoltage, overheating, and damage, potentially leading to failure of compensation devices and system outages.
Reactive power and harmonic currents increase total power demand, reducing transformer capacity. Managing these factors improves transformer efficiency and reduces losses.
Harmonics can disrupt relay protection signals, causing device malfunctions and ineffective protection.
Harmonics can affect user devices, leading to display inaccuracies, touch failures, and malfunctions in precision equipment like medical or CNC devices.
Private Doctor of the Power Grid
ACTIVE HARMONIC FILTER
Nonlinear loads generate high-order harmonic currents, causing current waveform distortion.

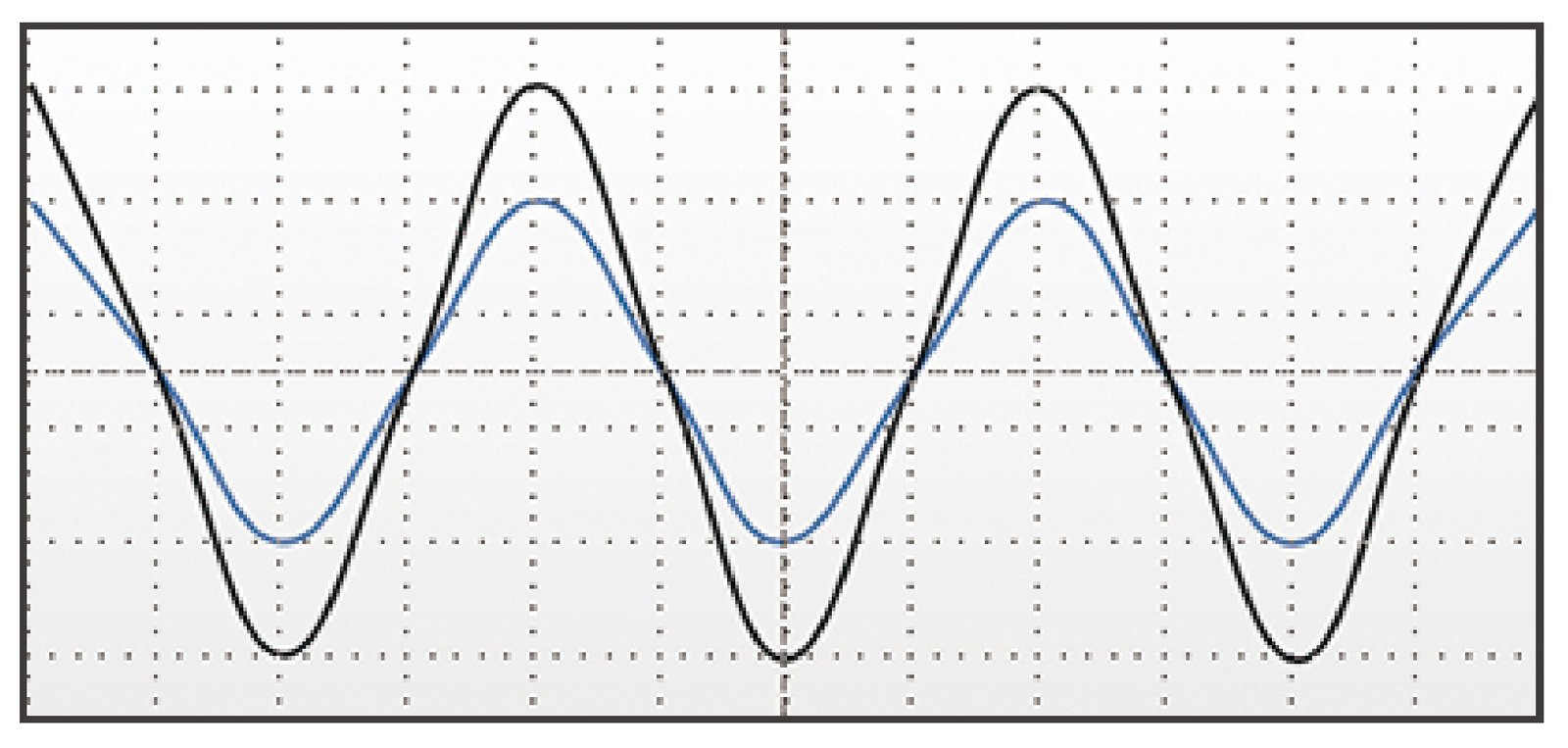

IKM-AHF generates harmonic currents with equal magnitude and opposite phase to cancel out the harmonics.
Three-phase unbalanced load current.
IKM-AHF shifts the unbalanced load current to ensure three-phase balance on the grid side.
STATIC VAR GENERATOR

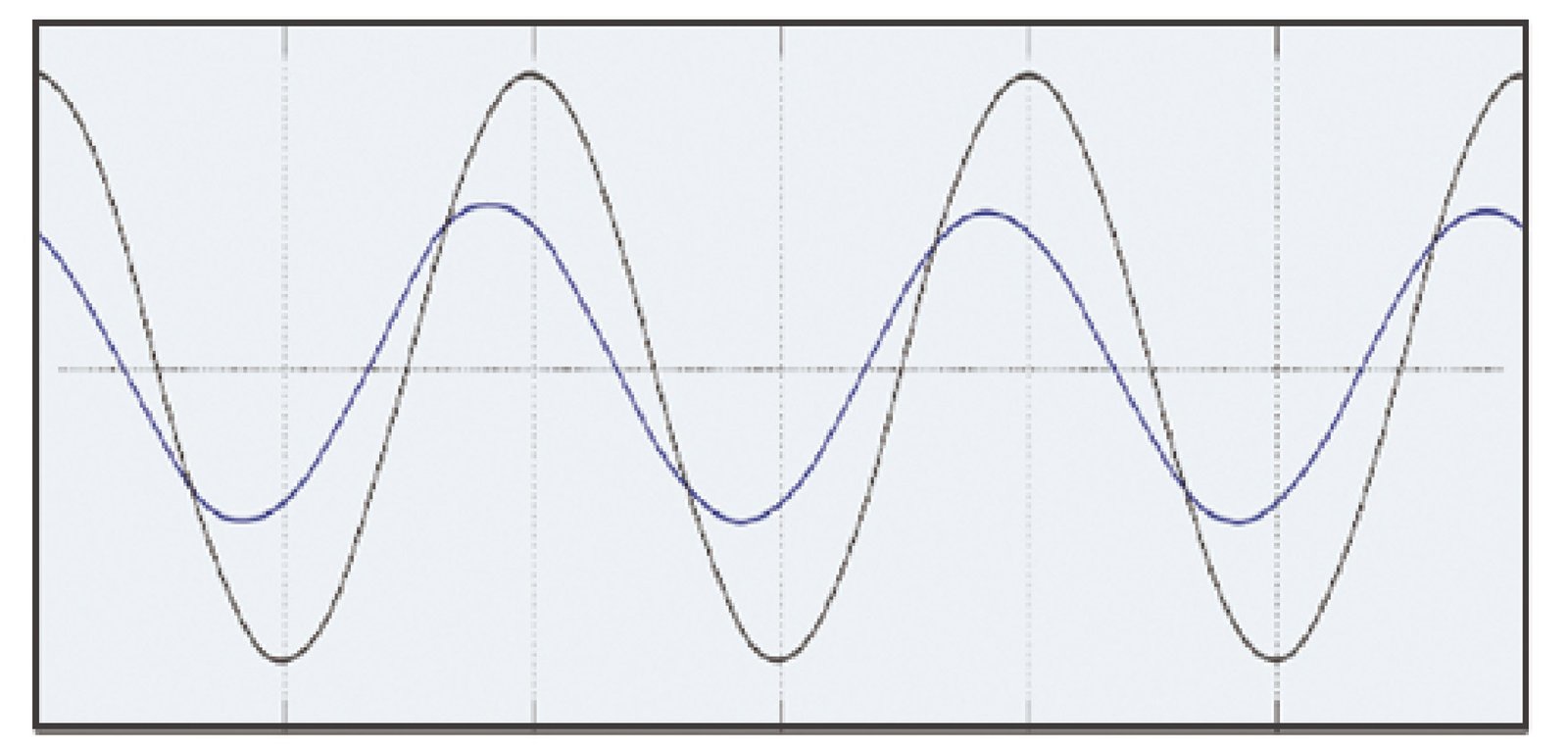

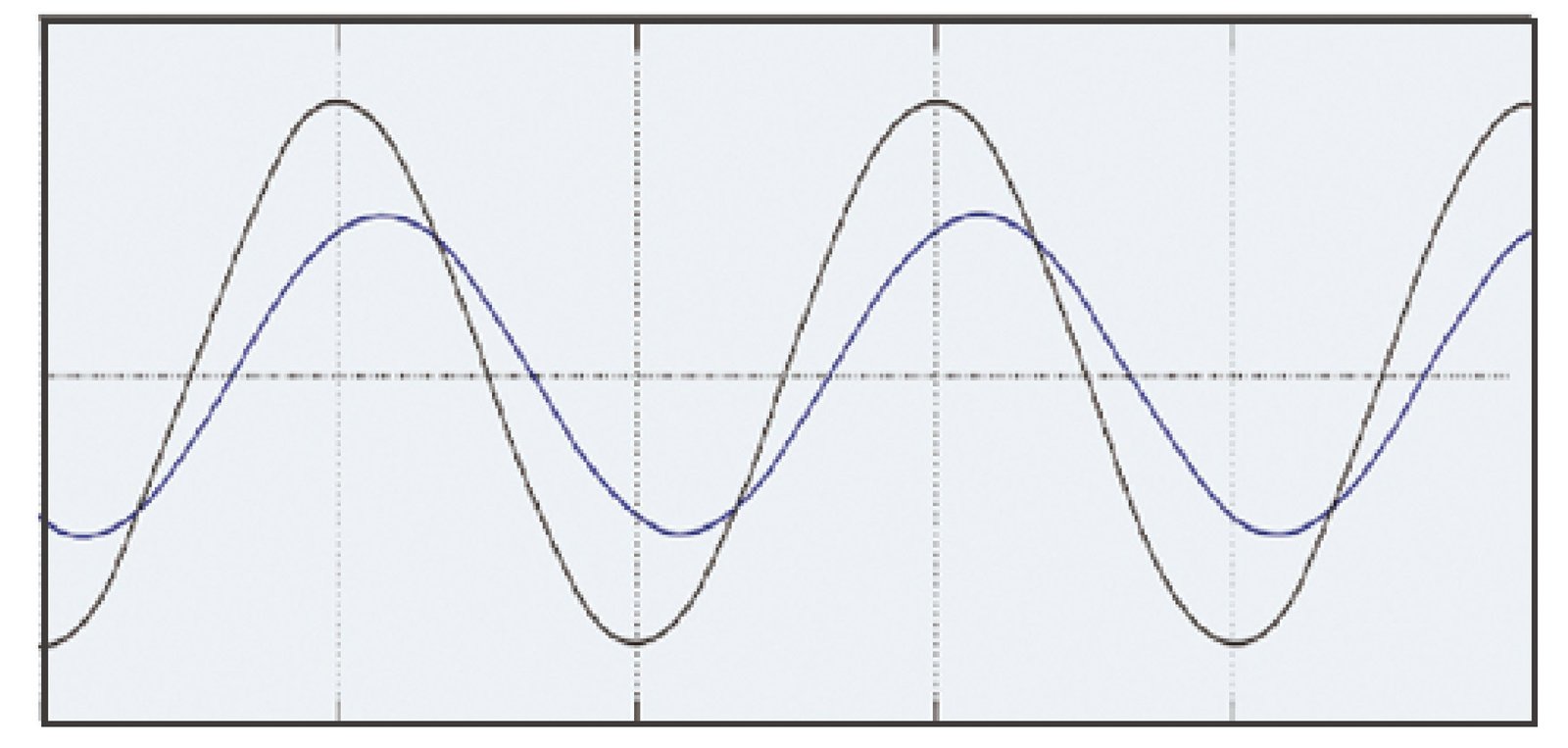

Motors and other loads generate inductive currents, creating reactive power with current lagging behind voltage.

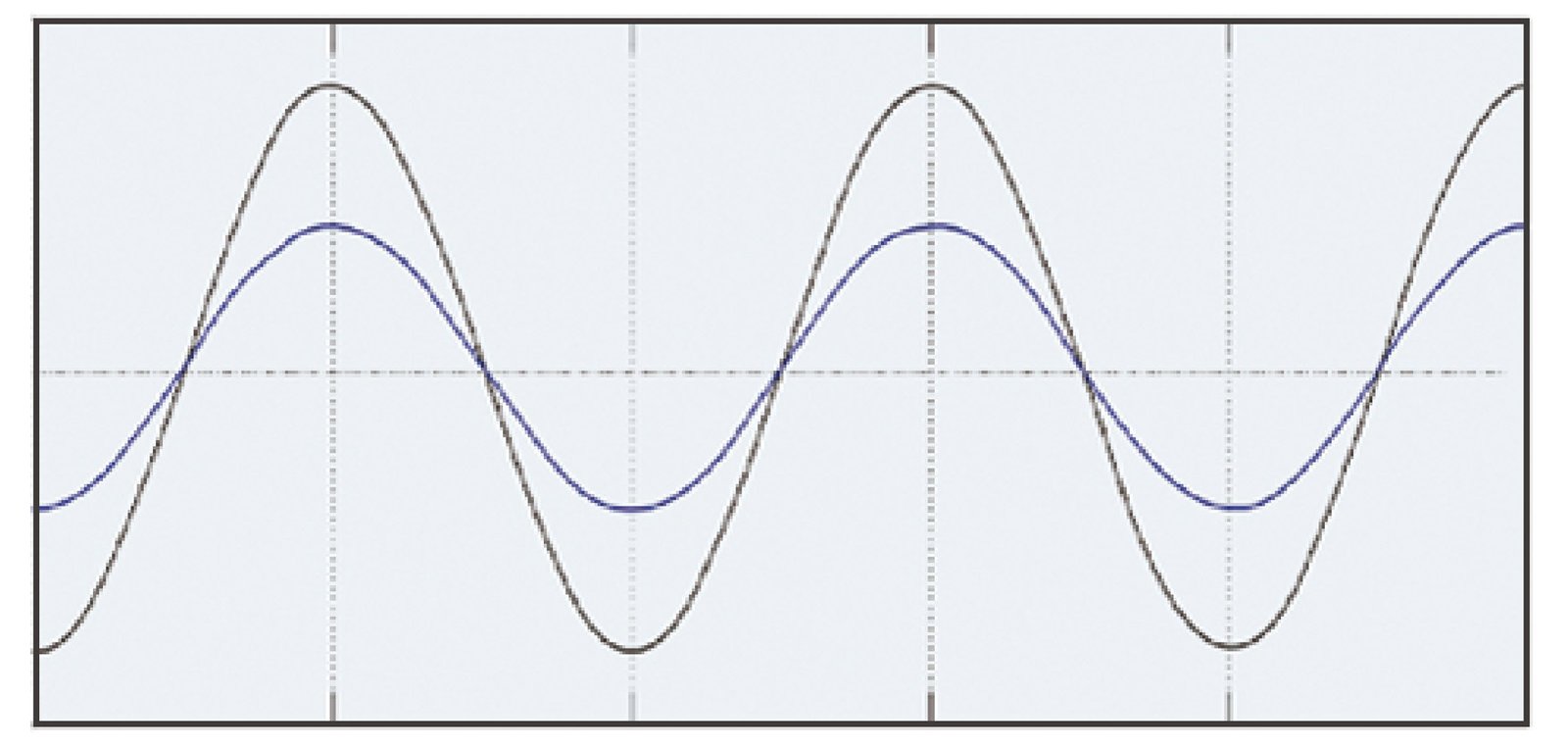

The IKM-SVG generates capacitive reactive power, which cancels out inductive reactive power, aligning voltage and current phases.
Capacitive loads generate capacitive current, creating capacitive reactive power with current leading voltage.

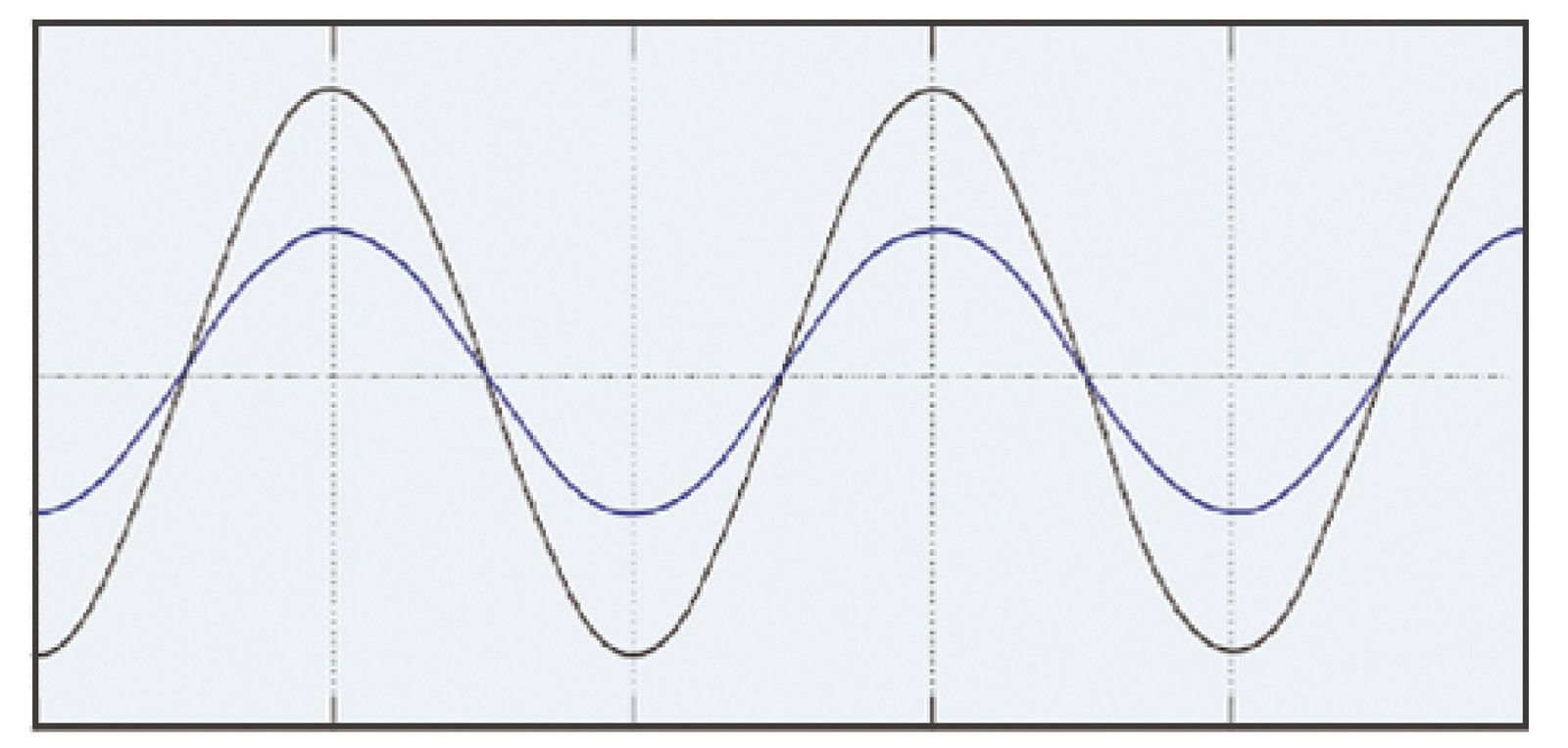

The IKM-SVG generates inductive reactive power, which cancels out capacitive reactive power, aligning voltage and current phases
Private Doctor of the Power Grid
ACTIVE HARMONIC FILTER
Nonlinear loads generate high-order harmonic currents, causing current waveform distortion.
IKM-AHF generates harmonic currents with equal magnitude and opposite phase to cancel out the harmonics.

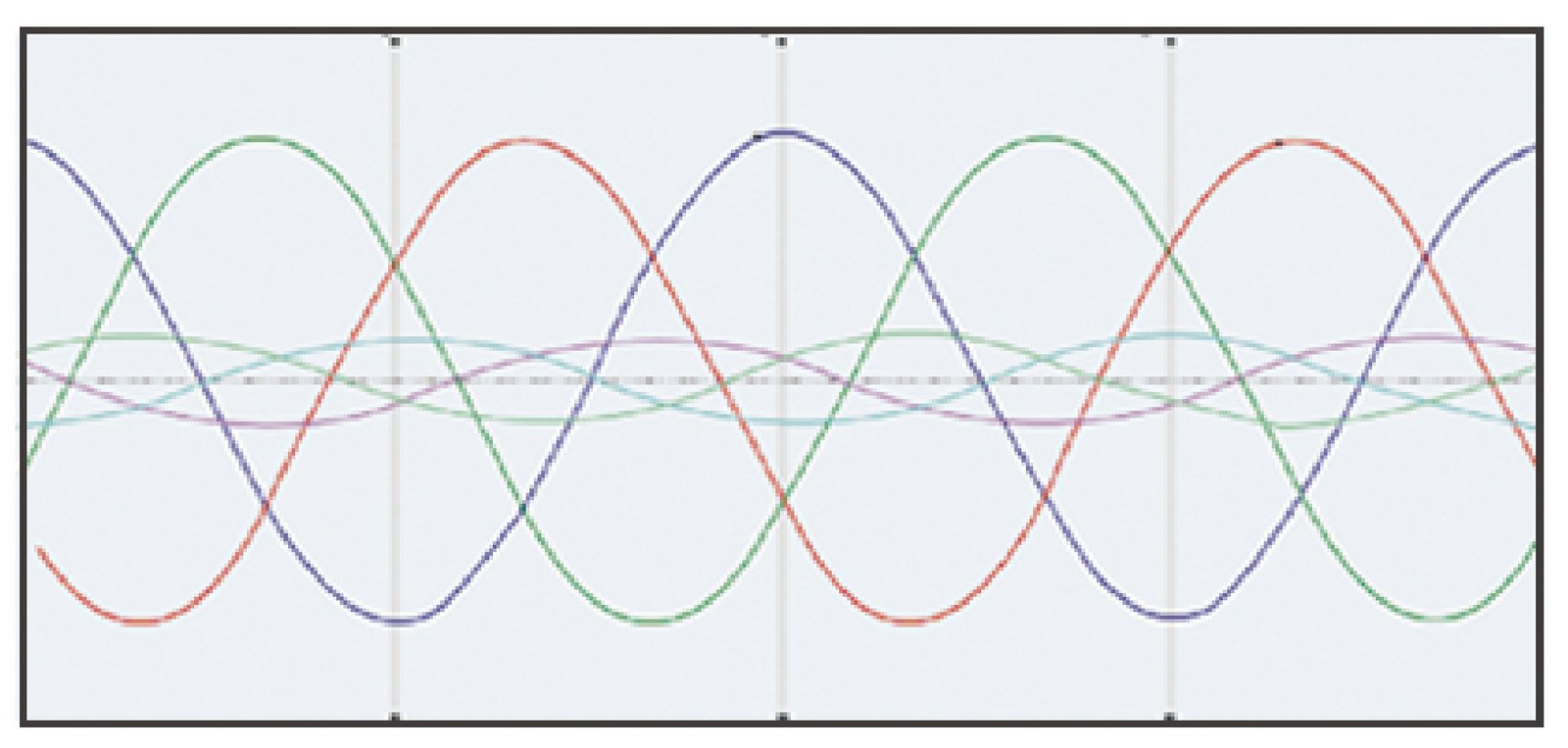

Three-phase unbalanced load current.

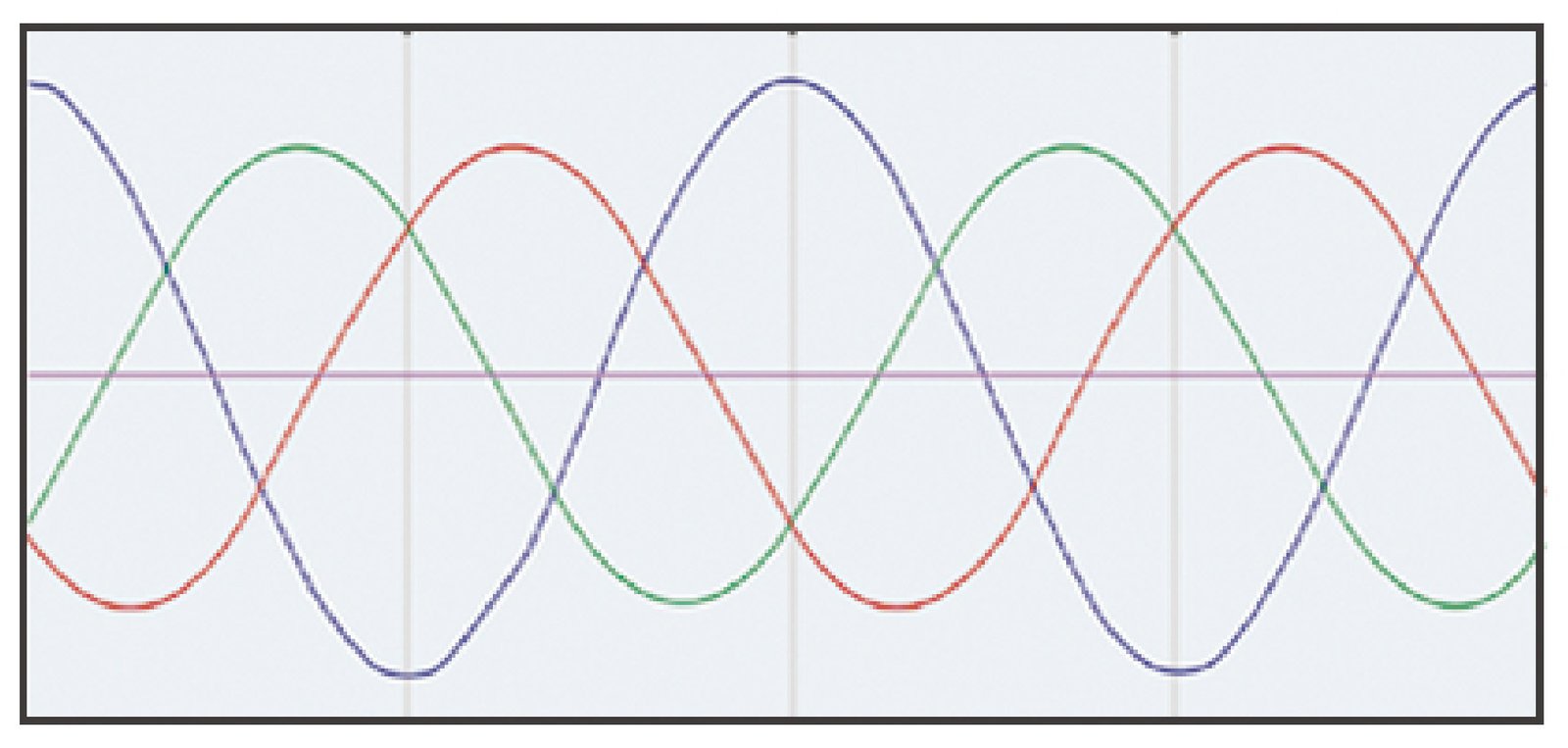

IKM-AHF shifts the unbalanced load current to ensure three-phase balance on the grid side.
STATIC VAR GENERATOR
Motors and other loads generate inductive currents, creating reactive power with current lagging behind voltage.
The IKM-SVG generates capacitive reactive power, which cancels out inductive reactive power, aligning voltage and current phases.
Capacitive loads generate capacitive current, creating capacitive reactive power with current leading voltage.
The IKM-SVG generates inductive reactive power, which cancels out capacitive reactive power, aligning voltage and current phases
