Power Quality Solution for Metallurgy Industry

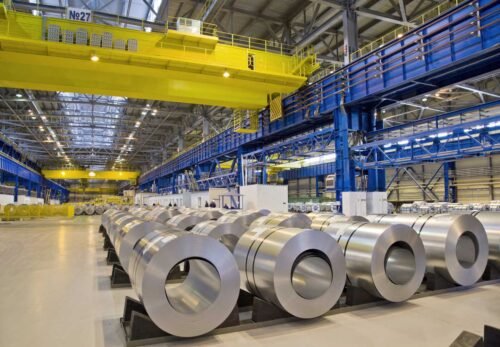

Ikonmac’s power quality solutions implemented in a metallurgy facility

Industry Overview

        Metallurgical operations often struggle with issues like high reactive power impact, low power factor, and significant harmonic distortion. Common equipment in the industry includes induction furnaces, electric arc furnaces, and rolling mills, all of which generate substantial harmonic currents. These harmonics distort the voltage and current waveforms in the power grid, compromising power supply quality and potentially harming other electrical equipment. iKonMac offers specialized harmonic filtering solutions that efficiently address these power quality challenges, creating a greener, safer, and more stable power environment for metallurgical facilities.

Power Quality Issues

  • Induction Furnaces & Rolling Mills
  • These systems typically use 6-pulse or 12-pulse converters. 6-pulse systems primarily generate 5th, 7th, 11th, and 13th-order harmonics. 12-pulse systems mainly generate 11th and 13th-order harmonics.
  • Electric Arc Furnaces
  • These generate large amounts of harmonic currents while also exhibiting three-phase imbalance and asymmetry. The main harmonics include third-order and its multiples, along with some even-order harmonics.

    Power Quality Challenges

            Metallurgical loads fluctuate rapidly, with frequent startups and shutdowns of induction furnaces, rolling mills, and electric arc furnaces. This leads to: Low power factor, resulting in penalties for excessive reactive power consumption. Voltage and current waveform distortion, increasing power losses in the distribution network. Deterioration of power quality, which directly affects the reliability and safety of electrical equipment.

    Solution

            IKM-AHF Series Active Harmonic Filters capable of filtering 2nd to 50th-order harmonics. Achieves a harmonic filtering efficiency of over 95%.
            IKM-SVG Series Static var Generators designed for dynamic reactive power compensation in complex environments. Fast response time of less than 10ms for real-time power quality improvement. Effectively enhances power quality and ensures safe electricity usage for industrial operations.

    SUCCESSFUL METALLURGY CASES

    No.

    City

    Project

    Date

    Solution

    1

    Jiangsu

    Jiangsu Zhuhong Forging Co., Ltd. Reactive Power Compensation Project

    May 2024

    SVG/AHF

    2

    Jiangsu

    Suzhou Kunlun Heavy Equipment Manufacturing Co., Ltd. Reactive Power Compensation Project

    May 2024

    SVG

    3

    Jiangsu

    Jiangsu Zhuhong Heavy Industry Co., Ltd. Reactive Power Compensation Project

    April 2024

    SVG/AHF

    4

    Zhejiang

    Zhejiang Yongjie Aluminum Co., Ltd. Reactive Power Compensation Project

    March 2024

    SVG

    5

    Sichuan

    Pangang Chengdu Auto Parts Co., Ltd. Harmonic Treatment Project

    March 2024

    AHF

    6

    Jiangsu

    Changzhou Wujin Stainless Steel Harmonic Treatment Project

    February 2024

    AHF

    7

    Jiangsu

    Wuxi General Steel Rope Co., Ltd. Harmonic Treatment Project

    February 2024

    AHF

    8

    Anhui

    Anhui Xin Lantian Steel Structure Reactive Power Compensation Project

    November 2023

    SVG

    9

    Jiangsu

    Jiangsu Lianyungang Steel Wire Rope Co., Ltd. Harmonic Treatment Project

    October 2023

    AHF

    10

    Henan

    Henan Luoyang Lu Copper Processing Plant Harmonic Treatment Project

    September 2023

    SVG/AHF

    Date

    Project

    Solution

    May
    2024

    Zhuhong Forging Co., Ltd.

    SVG/AHF

    May
    2024

    Kunlun Heavy Equipment Co., Ltd.

    SVG

    Apr
    2024

    Zhuhong Heavy Industry Co., Ltd.

    SVG/AHF

    Mar
    2024

    Yongjie Aluminum Co., Ltd.

    SVG

    Mar
    2024

    Chengdu Auto Parts Co., Ltd.

    AHF

    Feb
    2024

    Wujin Stainless Steel Project

    AHF

    Feb
    2024

    General Steel Rope Co., Ltd.

    AHF

    Nov
    2023

    Xin Lantian Steel Project

    SVG

    Oct
    2023

    Steel Wire Rope Co., Ltd.

    AHF

    Sep
    2023

    Luoyang Copper Processing Plant

    SVG/AHF
